Dual Diode: An Introduction and Its Applications

Dual diodes, as the name suggests, are semiconductor devices consisting of two diodes connected in a single package. These diodes are often utilized in various electronic circuits and applications, offering benefits such as compact size, improved thermal performance, and simplified circuit design. This article delves into the working principle of dual diodes, their typical applications, and the advantages they offer.

Understanding Dual Diodes

Diodes are semiconductor devices that allow current to flow in one direction while blocking it in the other direction. They are typically formed by joining p-type and n-type semiconductor materials, creating a p-n junction. When a voltage is applied across the junction, it allows the current to flow in the forward-biased condition, while in the reverse-biased condition, it prevents the current from flowing.

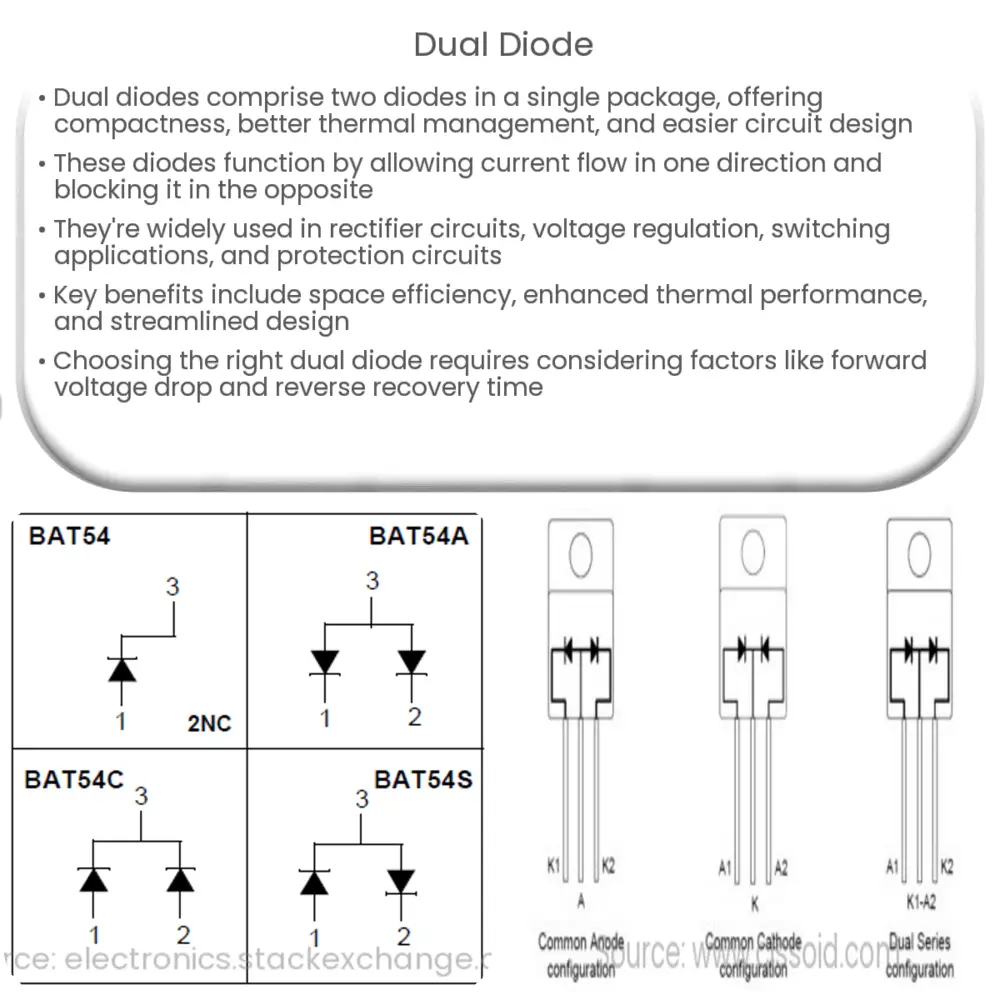

Dual diodes take this concept a step further by incorporating two diodes within a single package. The arrangement of these diodes can be in series, parallel, or a combination of both, depending on the intended application. This configuration offers several advantages over using individual diodes, including reduced space requirements, better thermal performance, and simplified design.

Common Applications of Dual Diodes

Dual diodes find use in a wide range of applications across various industries, including power electronics, telecommunications, and automotive systems. Some of the most common applications are outlined below:

1. Rectifier circuits: Dual diodes are often employed in full-wave rectifier circuits, where they are used to convert alternating current (AC) to direct current (DC). By utilizing dual diodes, designers can achieve a more compact and efficient circuit compared to using individual diodes.
2. Voltage regulation: In voltage regulation circuits, dual diodes can be used as a voltage reference, ensuring a constant output voltage despite fluctuations in input voltage or load conditions.
3. Switching applications: Due to their fast switching capabilities, dual diodes are suitable for high-frequency switching applications, such as in pulse-width modulation (PWM) circuits and switch-mode power supplies.
4. Protection circuits: Dual diodes can be used to protect sensitive components from voltage spikes and electrostatic discharge (ESD) by providing a path for the excess voltage to flow, thus preventing damage to the device.

Advantages of Using Dual Diodes

The use of dual diodes in electronic circuits offers several benefits, including:

• Space savings: By incorporating two diodes in a single package, dual diodes help reduce the overall footprint of a circuit, making it more compact and suitable for applications with limited space.
• Improved thermal performance: Dual diodes often exhibit better thermal performance compared to individual diodes, as they share a common thermal path, enabling more efficient heat dissipation.
• Simplified design: The use of dual diodes can simplify circuit design by reducing the number of components required, leading to a more straightforward layout and assembly process.

Selecting the Right Dual Diode

When choosing a dual diode for a specific application, several factors must be considered to ensure optimal performance and reliability. These factors include:

• Forward voltage drop (Vf): The voltage drop across the diode when it is in the forward-biased condition. Lower forward voltage drops lead to higher efficiency and reduced power dissipation.
• Reverse recovery time (trr): The time it takes for the diode to switch from its conducting state to its non-conducting state. Faster reverse recovery times are crucial for high-frequency switching applications.
• Maximum reverse voltage (Vr): The maximum voltage the diode can withstand in the reverse-biased condition without breaking down. It is essential to choose a dual diode with a sufficient maximum reverse voltage rating to prevent device failure.
• Current rating (If): The maximum continuous forward current the diode can handle. It is crucial to select a dual diode with an appropriate current rating for the intended application to ensure reliable operation and prevent device overheating.
• Package type: Dual diodes are available in various package types, such as through-hole and surface-mount. The package type should be selected based on the specific requirements of the application and the assembly process.

Notable Dual Diode Manufacturers

Several manufacturers offer a wide range of dual diodes to cater to the diverse needs of different applications. Some of the most notable dual diode manufacturers include:

• Vishay: A leading manufacturer of discrete semiconductors and passive components, Vishay offers a broad portfolio of dual diodes, including Schottky, fast recovery, and ultrafast recovery diodes.
• ON Semiconductor: ON Semiconductor provides a variety of dual diodes, including common cathode, common anode, and series configurations, catering to various applications such as rectification, voltage regulation, and protection circuits.
• Infineon Technologies: A global semiconductor manufacturer, Infineon offers dual diodes in various package types and performance classes, suitable for applications in power electronics, telecommunications, and automotive systems.
• STMicroelectronics: STMicroelectronics, a leading semiconductor company, provides a wide range of dual diodes, including standard, fast, and ultrafast recovery diodes, suitable for rectifier circuits, voltage regulation, and protection applications.
• Diodes Incorporated: Specializing in high-quality discrete components, Diodes Incorporated offers dual diodes in various configurations and performance specifications, catering to the diverse requirements of different electronic applications.

Conclusion

Dual diodes are versatile and valuable components in various electronic circuits and applications. They offer numerous benefits, including space savings, improved thermal performance, and simplified design. By understanding the working principles, applications, and factors to consider when selecting a dual diode, designers can harness these advantages and create efficient, reliable, and compact electronic systems.
